Magnetron for Industry

Magnetron for Industry

Magnetrons are highly evaluated for their superior quality and reliability in the industrial heating use.
The Magnetrons are also contributing to various advanced industrial fields such as electronic device manufacturing, microwave light emission, dry processing, etc.

Magnetron's strong points are as follows;

●High Quality, High Performance
●Compact, Light Weight
●Excellent Efficiency

Applications ;

Microwave ovens, and UV systems

Product lineup

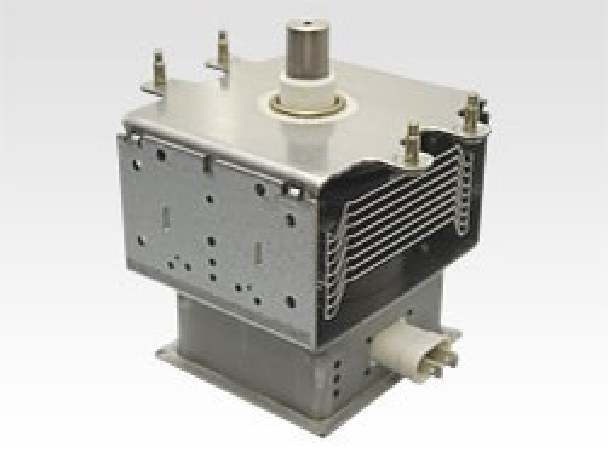

2M121A

・Frequency:2455 MHz
・Average output:1.4 kW

  • Permanent magnet
  • Air cooling

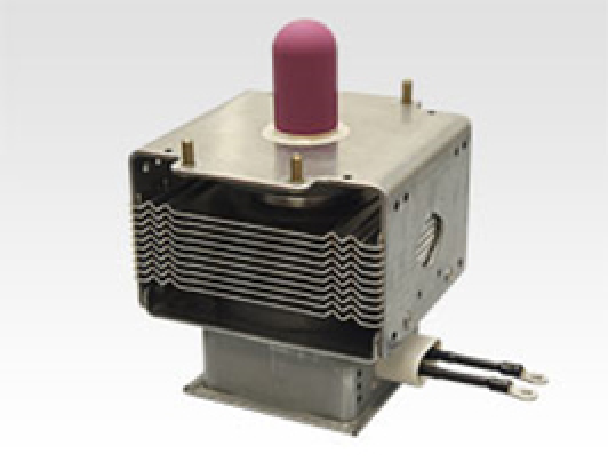

2M130

・Frequency:2455 MHz
・Average output:2.0 kW

  • Permanent magnet
  • Air cooling

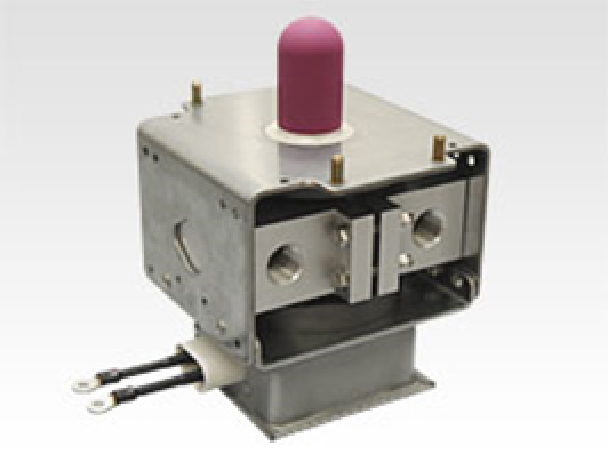

2M256

・Frequency:2455 MHz
・Average output:2.0 kW

  • Permanent magnet
  • Water cooling

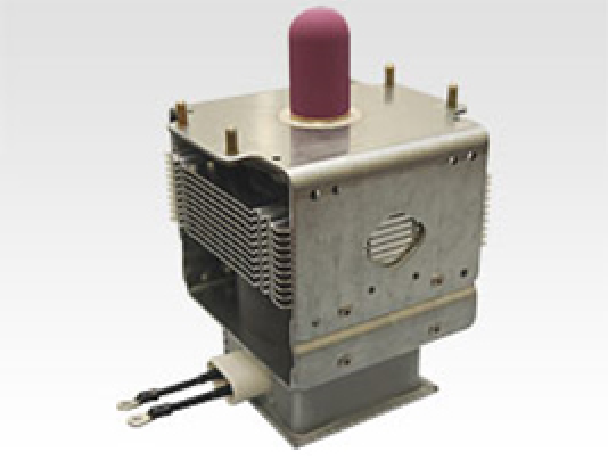

2M251

・Frequency:2455 MHz
・Average output:3.0 kW

  • Permanent magnet
  • Air cooling

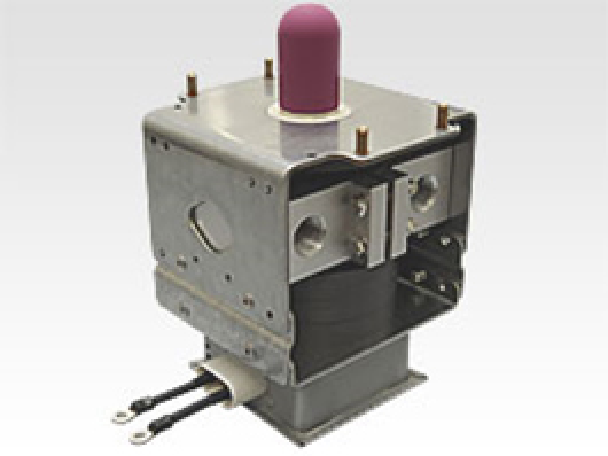

2M252

・Frequency:2455 MHz
・Average output:3.0 kW

  • Permanent magnet
  • Water cooling

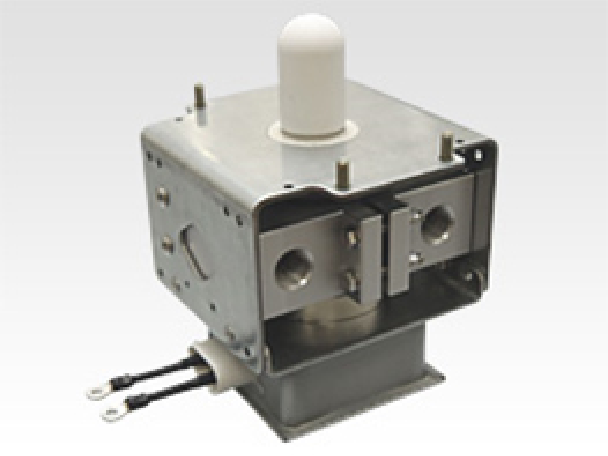

H3881(2M304)

・Frequency:2460MHz
・Average output:6.0 kW

  • Permanent magnet
  • Water cooling

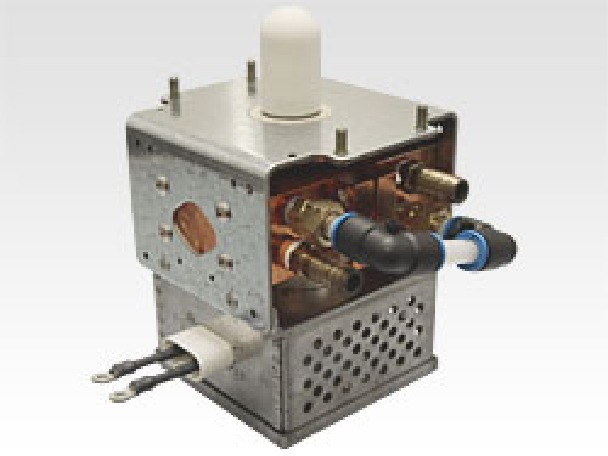

H0915(2M305)

・Frequency:2460 MHz
・Average output:10.0 kW

  • Permanent magnet
  • Water cooling

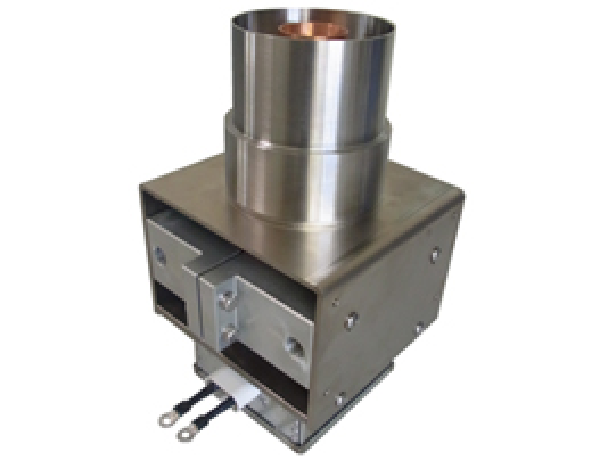

H0930

・Frequency:915 MHz
・Average output:5.0 kW

  • Permanent magnet
  • Water cooling
  • 915 MHz
  • Coaxial connector

The following table shows you the lineup of our Magnetron. If you would like to see more detailed specification, please click the link on the part number.

PartNumber Output
Power		 Filament
Voltage		 Filament
Current		 Filament
Voltage
(Operation)		 Average
Anode
Current		 Peak Anode
Voltage		 Frequency Cooling
(Pre-heating)
Po (W) Ef (V) If (A) Ib (mA) ebm (kVp) fo (MHz) Air Water
2M121A 1,450 4.6 14.0 3.8 450 4.5 ○ -
2M130 2,000 4.6 20.0 3.4 725 4.0 ○ -
2M256 2,000 4.6 20.0 3.4 725 4.0 - ○
2M251 3,000 4.0 23.5 2.2 840 5.2 ○ -
2M252 3,000 4.0 23.5 2.2 840 5.2 - ○
H3881 6,000 5.0 29.0 1.5 1100 7.5 (DC) - ○
H0915 10,000 6.0 33.0 1.5 1600 8.9 (DC) - ○
H0930 5,000 5.0 31.0 3.3 850 7.3 (DC) - ○

※We also have deuterium lamps for semiconductor inspection equipments.
